Units A & C Stanton Harcourt Industrial Estate. New industrial units built by Keith Cook Construction

Keith Cook Construction is currently undertaking an exciting new project at Stanton Harcourt Industrial Estate, where two new units, Unit A and Unit C, are being developed. The combined area of these units is a substantial 2585 m2.

These buildings are designed to meet Grade A UPC Rating standards, ensuring high-quality construction and energy efficiency. Additionally, the project includes the installation of two large Solar Panel arrays, which will contribute to the sustainability of the development.

In line with environmental considerations, the regeneration of the external areas is also planned with local wildlife in mind, aiming to create a harmonious balance between industrial development and natural preservation.

Enabling Works.

This included a HV Cable diversion around the site perimeter.

Main Works.

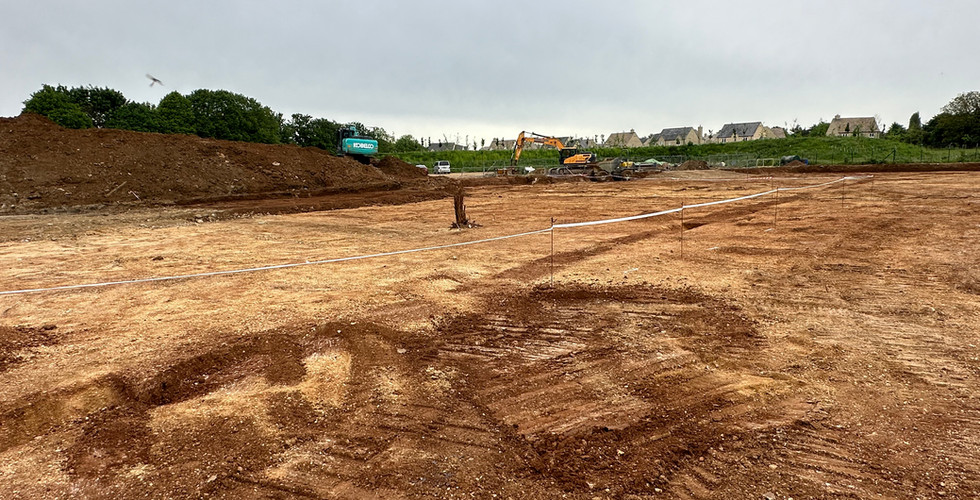

Site strip and Reduce dig under watching brief.

Foundations, Steel Frame.

Cladded Roofing Panels (Supplied and installed by ISC System Ltd, Banbury)

Exploring the Benefits of Kingspan Quadcore Roof Panels for Modern Construction

In the realm of modern construction, efficiency and sustainability are paramount. The Kingspan Quadcore Roof Panel KS1000RW is a product that stands out in the market, offering a blend of durability, thermal performance, and ease of installation. This innovative solution is particularly suitable for new units requiring cladding roof sheets, providing a reliable and high-performing roofing system.

The KS1000RW panels are through-fix, trapezoidal profiled insulated roof panels, designed for applications with roof pitches of 4° or more after deflection. These panels come in a variety of lengths, ranging from standard (1.8 - 14.5 meters) to longer, non-standard options (up to 29.2 meters), accommodating a wide range of building sizes and specifications.

One of the most significant advantages of the Quadcore KS1000RW is its core thickness, which varies from 40mm to 150mm, providing different U-values and weights per square meter. This flexibility allows architects and builders to choose the appropriate thickness for their specific thermal performance requirements.

Moreover, the Quadcore insulation used in these panels has a thermal conductivity (λ) of 0.018 W/m.K, ensuring excellent thermal efficiency. This not only helps in maintaining a comfortable interior climate but also contributes to energy savings and reduced carbon footprint.

The panels are also certified for fire safety, with a reaction to fire classification of B-s1,d0 according to European standards, ensuring peace of mind for both builders and occupants.

For those looking to install these panels, the prefabricated nature of the KS1000RW means that the installation process is quicker than traditional roof structures. This results in an instantly wind and water-tight roof, significantly reducing construction risks and potentially lowering labor costs.

In conclusion, the Kingspan Quadcore KS1000RW Roof Panel is an exemplary choice for new construction projects, especially where efficient, sustainable, and safe roofing solutions are required. Its combination of thermal performance, fire safety, and ease of installation make it a go-to option for modern building envelopes.

Ground floor slab preparation.

Slab constructed with Type 1, sand blinding, Gas membrane, insulation and a 175mm concrete slab with mesh.

Concrete Slabs

The new concrete slabs are installed to FM2 tolerance. The FM2 tolerance is achieved through the use of a laser screed, a cutting-edge technology that ensures the concrete is placed with high accuracy. The laser screed helps in producing a level and uniform surface, which is crucial for warehouses, industrial sites, and any facility that requires a flat floor for operational purposes.

Masonry Works

The construction work on the retaining wall at the rear of the site has been completed, including the block work up to the first level.

Next, the scaffolding will be installed.

Wall Cladding.

The Units require an "A" EPC Rating for efficiency. The panel of choice was the Kingspan Quadcore AWP KS1000 MM panel. These advanced insulated panels are renowned for their superior thermal performance, fire resistance, and aesthetic appeal.
